Description
FOCUS GX ATX 3

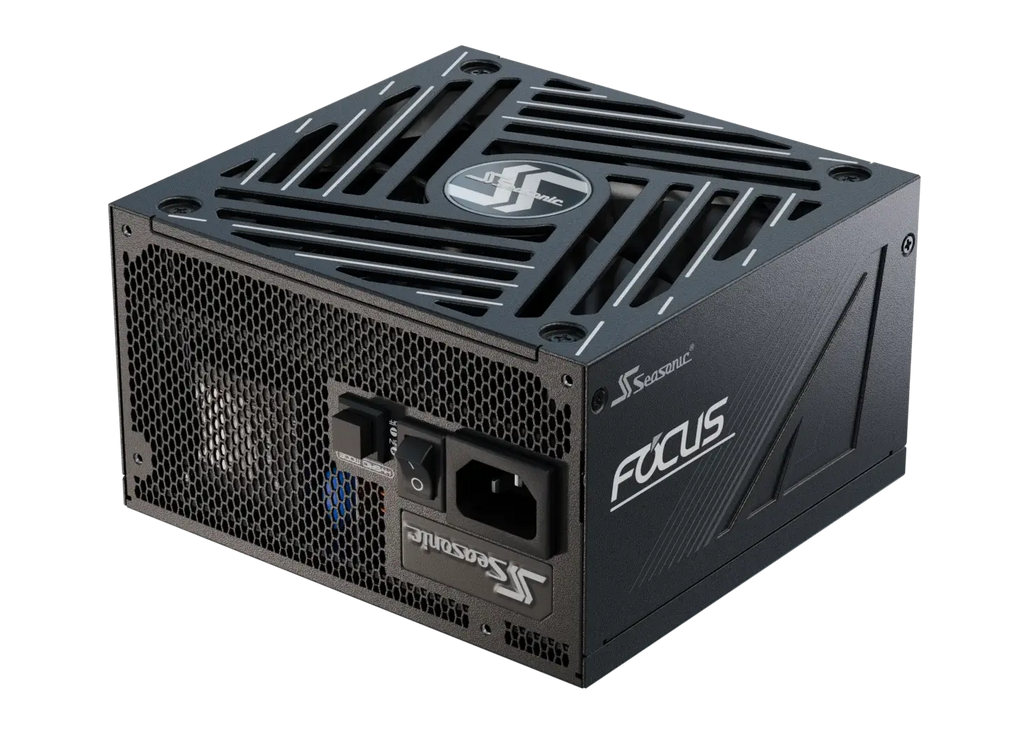

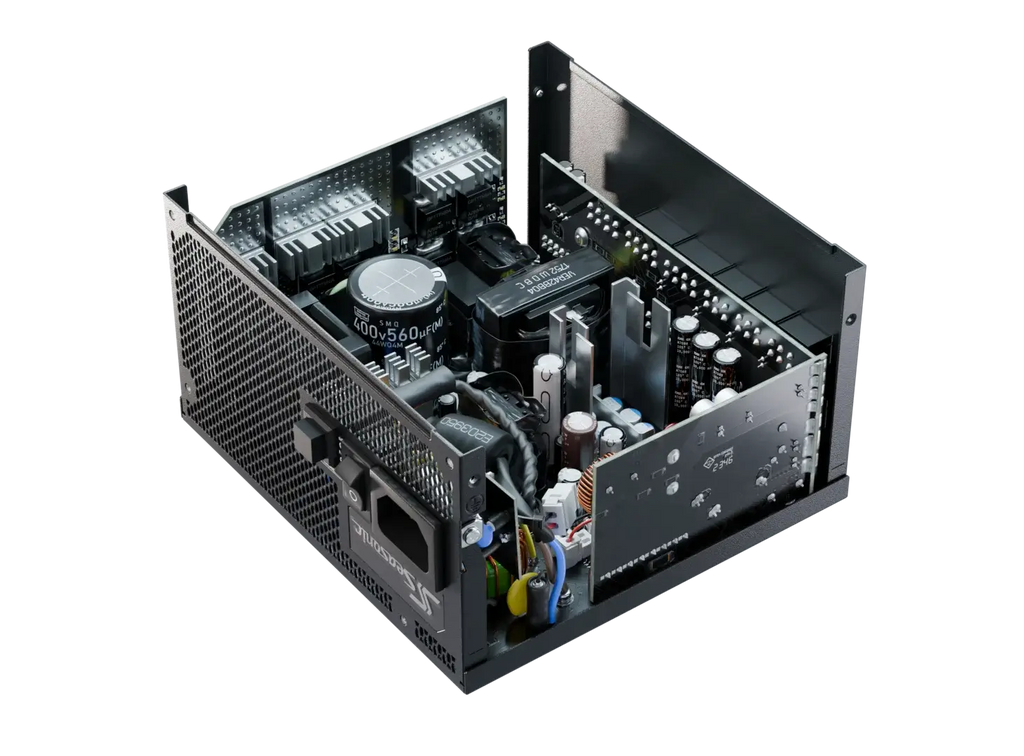

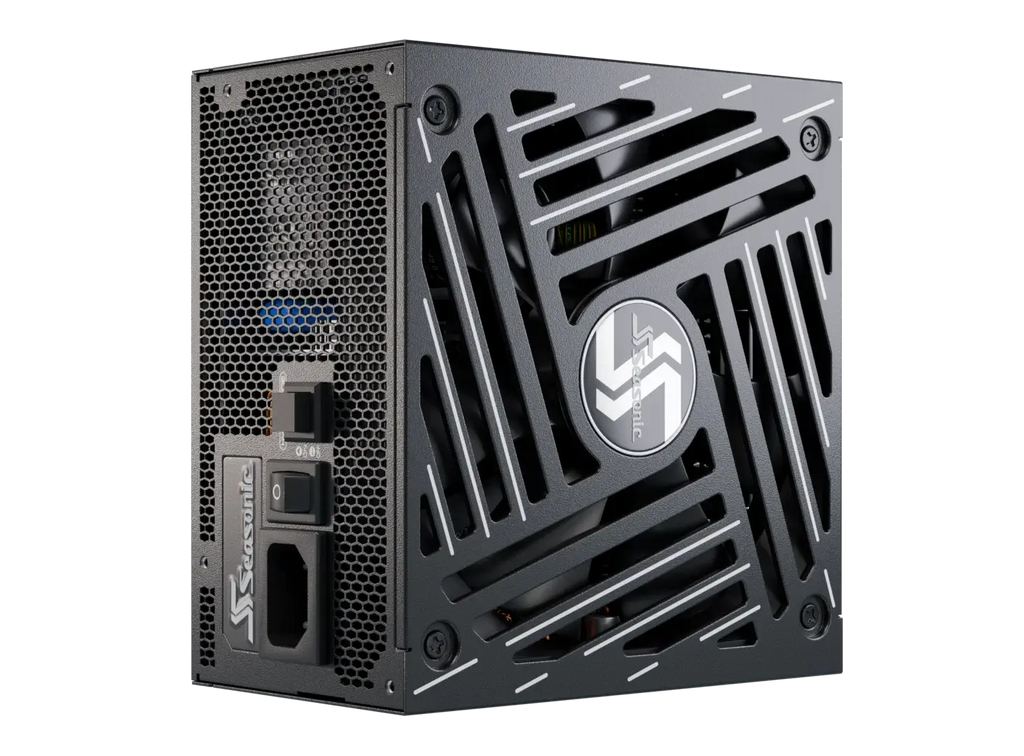

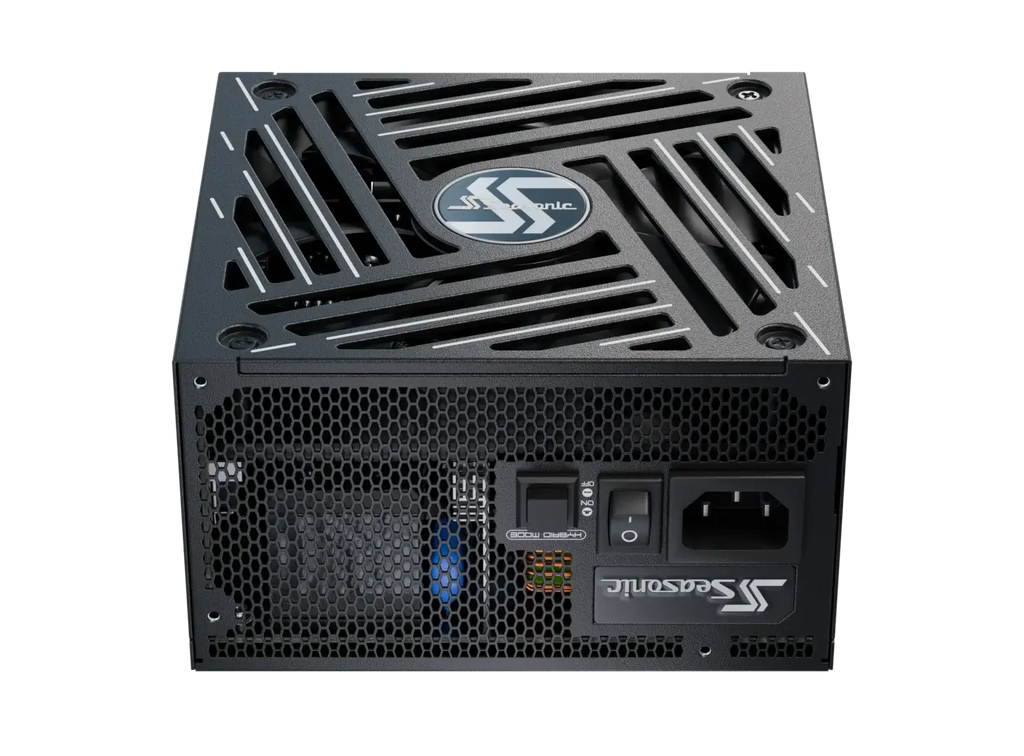

Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2 6 cable, and our new OptiSink technology. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.
SPECIFICATIONS
Technical Specifications | ||
80PLUS |
Gold |
|
Cybenetics Efficiency Level |
TBA |
|
Cybenetics Noise Level |
TBA |
|
Form Factor |
ATX/EPS |
|
Fan Information |

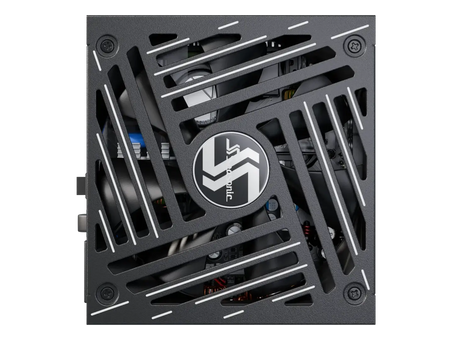

Fan Size |
135 mm |
Fan Control |
Digital Hybrid Fan Control |
|
Fan Bearing |
Fluid Dynamic Bearing |
|
Life Expectancy |
50,000 hours at 40 C, 15 % - 65 % RH |
|
Cable Information |

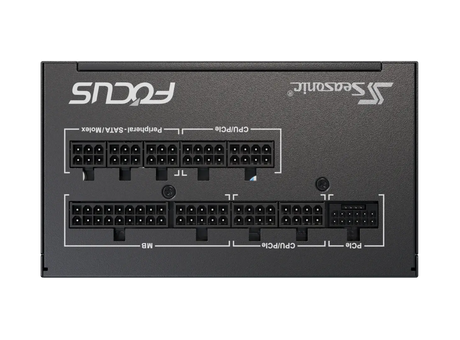

Modularity |
Fully Modular |
Cable type |
Individual Black Cables with Braided Pattern |
|
Electrical Features |
Operating Temperature |
0 - 50 C |
MTBF @ 25 C, excl. fan |
100,000 hours |
|
AC Input |
Full Range |
|
Protection |
OCP, OPP, OTP, OVP, SCP, UVP |
|
Safety and Environmental |
Safety and EMC |
CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC |
Environmental Compliance |
Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
|
Warranty |
10 Years |
|
Power Output | ||||||
AC Input |
Voltage: 100 V - 240 V |
|||||
Current: 10 - 5 A | ||||||
Frequency: 50 Hz - 60 Hz | ||||||
DC Output |
Rail |
+3.3 V |
+5 V |
+12 V |
-12 V |
+5 VSB |
Maximum Power |
20 A |
20 A |
62 A |
0.3 A |
3 A |
|
100 W |
744 W |
3.6 W |
15 W |
|||
Total continuous power |
750 W |
|||||
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
You may also like
Recently viewed

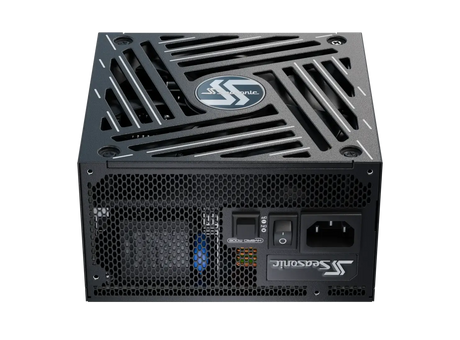

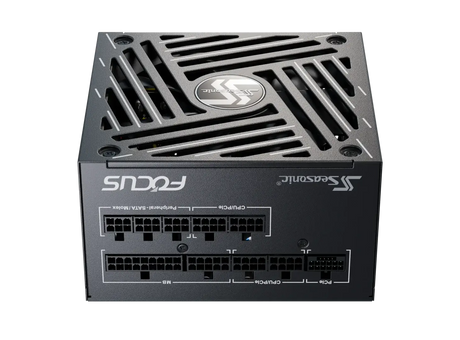

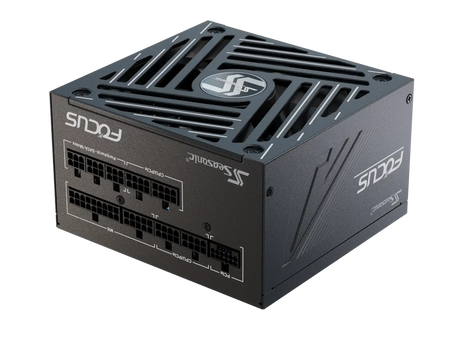

Seasonic 750W Focus GX-750 V4 Fully-Modular 80 PLUS Gold ATX3.1/PCIe 5.1 PSU SRP-FGX751-A5A32SF
